Breckenridge Upgrade Trip

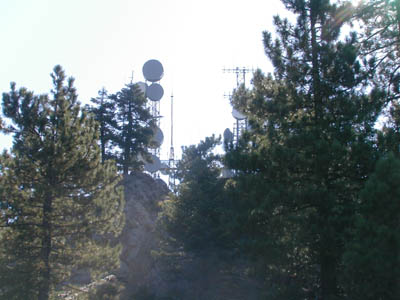

Photo of the Breckinridge site coming up the dirt road. This picture was taken facing east.

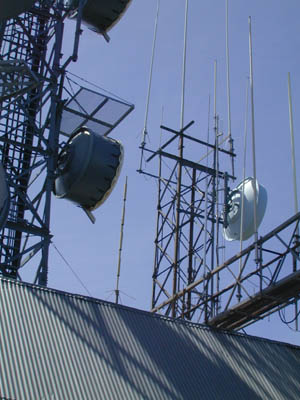

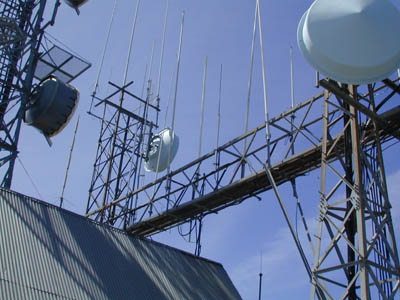

This is a picture of the 10 meter remote base antenna which is directly in the middle of the tower on the cat walk to the left of the blue microwave dish.







Our 440 repeater antenna is located to the right of the microwave dish on the cat walk.

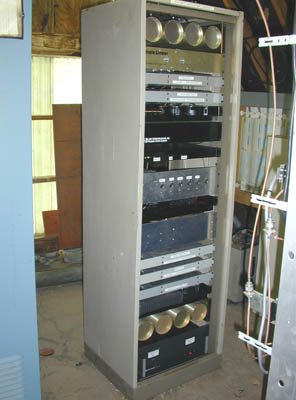

Photo of the Breckenridge repeater. From top to bottom. Repeater duplexer, repeater pre-amp and filter panel,  repeater receiver, Repeater transmitter, fan tray, Linkcomm RlC-3 controller, universal audio board box, power switching panel, rack tray, pre-amp panel for link north, link radios, north link duplexer and power supply.

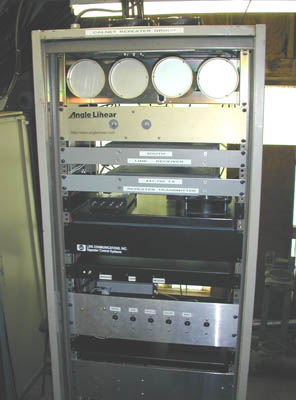

A closer shot of the front of the rack.

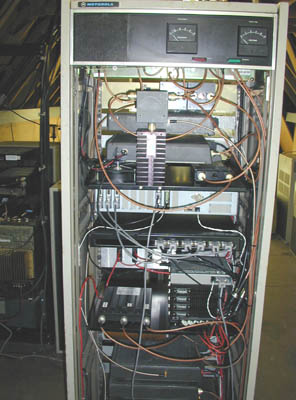

Photo of the back of the rack.

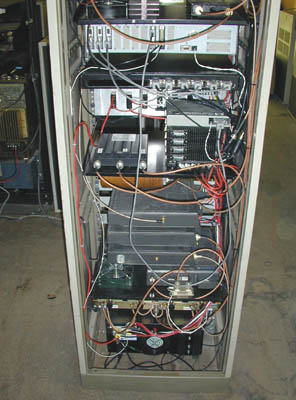

Photo of the back of the rack from the controller down to the floor. Lots of hardware in this rack.

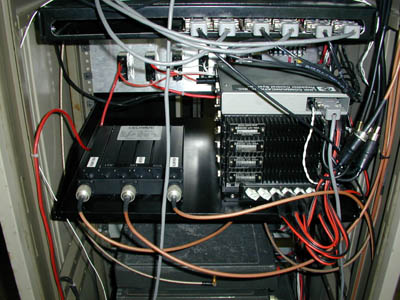

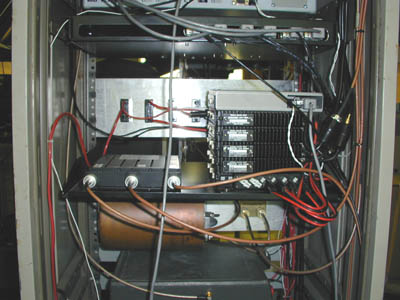

Close up of the back of the rack. The black radios on the right side are the remote base radios. The silver box on top of the remote base radios is the controller that talks with the remote radios and then sends this information to the main repeater controller up above not shown in the picture. This silver box lets us change frequencies, change PL, change offsets and change bands.

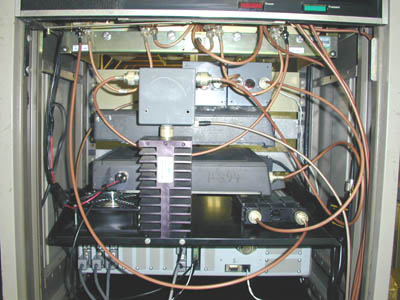

Photo of the back of the rack showing the repeater duplexer, pre-amp panel with bandpass filters, repeater receiver, repeater transmitter, fan rack with 451Mhz notch filter, and the RLC-3 Linkcomm controller.







From top to bottom UAB Box, DC power switching panel, right side duplexer for south link, left side remote base radios and pre-amp bandpass filter panel,  .

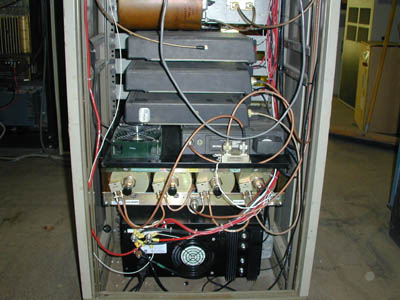

Mitrek link radios, fan tray, north link duplexer, and power supply.

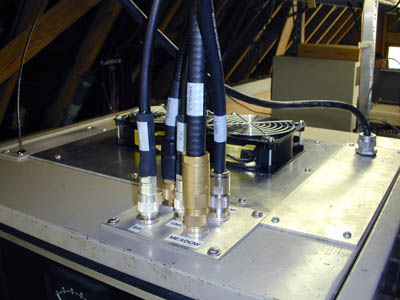

Top of the repeater showing all the feedlines going into the rack.
